ALL NEW! – Joe Mescan (GEN-2) Windmill Pond Aerator 3-IN-1 Compressor Design

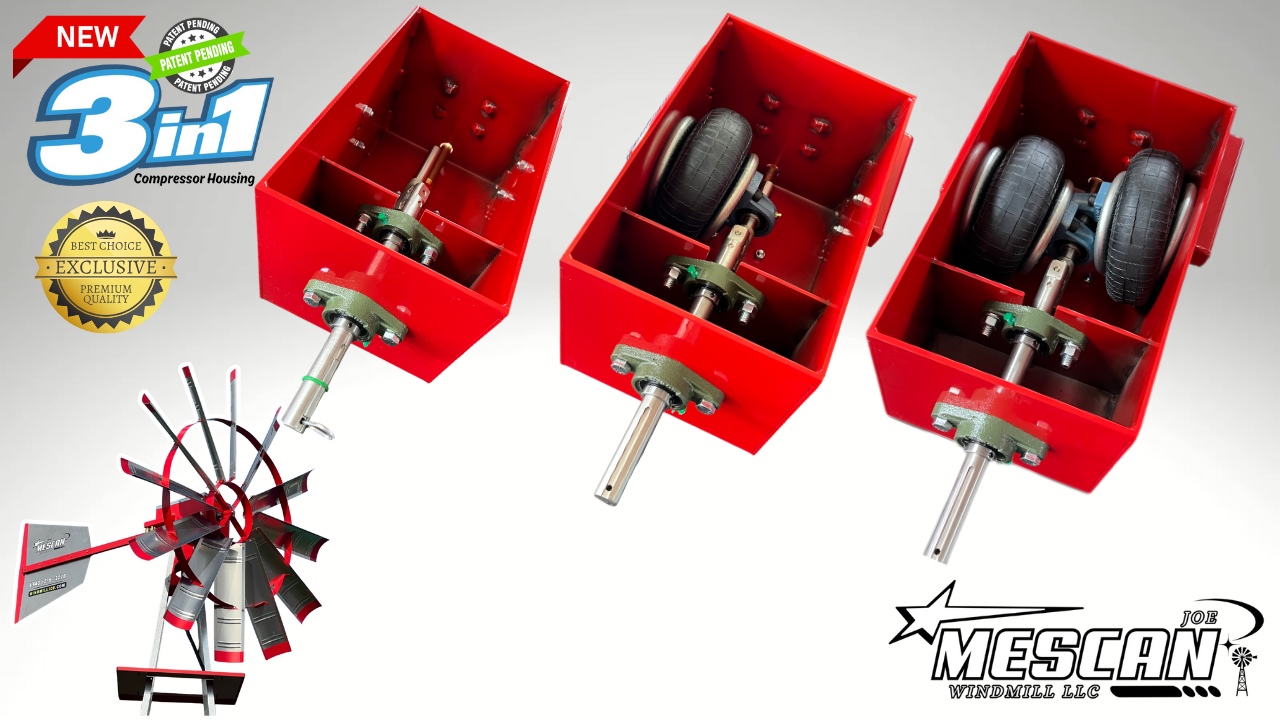

1. Introducing the revolutionary (GEN-2) Model, the first of its kind, patent-pending 3-in-1 windmill compressor housing in the world. Unlike its predecessor, the (GEN-1) model, the (GEN-2) model offers customers the flexibility to easily switch between decorative, single bellow, and double bellow configurations within the same compressor housing. Say goodbye to the stress of making the right choice, as you can effortlessly upgrade or downgrade your windmill to meet your specific requirements.

2.While the (GEN-1) model is a reliable and affordable option, the (GEN-2) boasts several key enhancements. Notably, it features the 3-in-1 modifiable compressors housing, a durable one-piece casted stainless-steel crank camshaft, along with high-quality brass check-valves and fittings. Additionally, the Joe Mescan (GEN-2) model diffusers package(s) include the latest innovation of our exclusive 360-degree diffuser stone(s) with brass check-valves and hose couplers, making it a top choice for windmill enthusiasts.

3. The (GEN-2) single bellow compressor is designed for ponds up to 2 acres, providing efficient aeration for aquatic life. 2. For larger ponds up to 4 acres, the double bellow compressor offers increased aeration capabilities. 3. Alternatively, the bellows can be removed to transform the compressor into a stunning yard and garden ornamental windmill, adding a touch of elegance to any outdoor space.

4.. The height selection for the (GEN-2) model depends on the placement of the windmill. If you have the luxury of situating it in a spacious, unobstructed area (Ideally 200ft) away from wind obstructions such as building and trees, a shorter windmill height will function just as effectively as a taller one. However, if there are any obstacles surrounding the windmill, it is advisable to opt for a taller height to ensure unobstructed access to the wind.

5. With its reliable performance and versatility, the (GEN-2) model offers an efficient solution for pond aeration. Whether you require a windmill for a smaller or larger pond, this model’s range of height options caters to various needs. Experience the benefits of this groundbreaking design that has stood the test of time and revolutionized the pond aeration windmill industry.

6. The (GEN-2) model is designed to be placed up to 1000ft away from your pond without any loss of CFM or PSI. This ensures that the windmill can effectively aerate your pond even when located at a distance.

7. The (GEN-2) model comes with all the necessary components for easy installation and operation. It includes the Complete Windmill, Ground Mounting Rods, and our Standard diffuser package. This package consists of 100ft of direct burial airline hose, 100ft of self-sinking weighted airline hose and an air diffuser stone for effective aeration.

8. With the (GEN-2) model, you can rest assured that your pond will receive proper aeration no matter where the windmill is placed. The included components make it easy to set up and ensure that your pond remains healthy and well-aerated.

9. Upgrade your diffuser packages with our convenient options available during check out. Choose between the Deluxe package or the Super deluxe package for an enhanced experience.

10.The Deluxe package includes 100ft of direct burial line, (2) 100ft coils of Self-sink airline hose, a Y-splitter with control handles, and 2 air diffuser stones with brass check valves.

11. For an even more superior option, go for our Super deluxe package. It includes 100ft of direct burial airline hose, (4) 100ft coils of self-sinking airline hose, a 4-way splitter valve with control handles, and (4) air diffuser stones with brass check valves. This package is designed to provide exceptional performance and efficiency.

12. To get a closer look at these amazing packages, make sure to check out the photo gallery above. With these upgraded options, you can customize your diffuser setup to meet your specific needs and enjoy the benefits of improved aeration in your aquatic environment. Upgrade today and take your diffuser system to the next level.

13. Joe Mescan windmills are designed to efficiently harness the power of even a gentle breeze, starting up at wind speeds as low as 3-5mph. To ensure optimal performance, it is important to consider the maximum combine depth of the diffusers. The total depth of the diffusers should not exceed 16ft total. For instance, if you choose 1 stone diffuser, the maximum depth can be up to16ft of depth.

14. If you opt for two stone diffusers, each diffuser should have a maximum depth of no more than 8ft depth each (totaling 16ft). This allows for a balanced distribution of wind energy and ensures the windmill operates smoothly.

15.Alternatively, you can choose four diffusers, with each diffuser having a maximum depth of 4ft. This configuration also maintains the total depth within the recommended limit of 16ft.

16. By adhering to these guidelines, you can optimize the performance of your Joe Mescan windmill and ensure it starts up efficiently even in light breezes. The carefully designed diffusers allow for the capture and conversion of wind energy, providing a sustainable and eco-friendly power source. With the right combination of diffusers, you can harness the power of the wind and contribute to a greener future.

17. All Joe Mescan Windmills features a 5-year warranty on the main components. This warranty ensures peace of mind and guarantees the quality and durability of our windmills. For more information on the warranty coverage, please refer to the warranty page for detailed terms and conditions.

If you have any further questions or need anything else, please don’t hesitate to give us a call at: (440) 236 – 3278 or Email us at: keith@pondaeration.com
